90V-246v Vertical Wall Printer Machine 1800mm Printing Height

Name: 90V246v Vertical Wall Printer Machine 1800mm Printing Height
Brand: Zhongkemeichuang
Price: 1 USD

China 90V-246v Vertical Wall Printer Machine 1800mm Printing Height wholesale

Brand Name : Zhongkemeichuang

Model Number : ZK-Q7PLUS

Certification : CE for machine, RoHS for ink

Place of Origin : Beijing, China

MOQ : 1

Payment Terms : T/T

Delivery Time : 5-10 work days

Packaging Details : 1 plywood box

Price : Negotiable

Supply Ability : 100 sets/month

Name : Low Cost 90-246v Printing Height 1800mm Vertical Wall Printer From Manufacturer

Applications : Kindgartens

Dimensions(l*w*h) : 70(L)*31(W)*239(H) cm

Usage : Wall decoration

Weight : 62kg

Ink type : Special water based ink

Contact Now

Low Cost 90-246v Printing Height 1800mm Vertical Wall Printer From Manufacturer

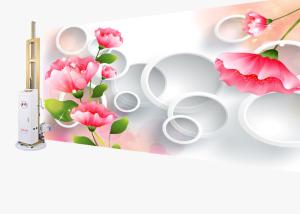

The vertical wall printer adopts Japanese printhead and high-definition piezoelectric inkjet technology, which has higher precision and durability. The machine data signal adopts integrated optical fiber output, which has more stable data transmission, high reliability, faster speed, and strong anti-interference ability.

Basic parameters
Data transmission mode	USB
LWH (main body from ground)	Standard model: 7031239cm (the other models: 259cm, 329cm)
Printhead	Auto cleaning
Ink consumption	8-12ml/m2 (less than USD1/m2)
Ink base color	Dual 4 colors (CMYK, CMYK), use special water based ink
Painting precision	From 720DPI, upto 2880DPI
Painting direction	Vertical
Painting speed	Multispeed adjustable, ~1-7m2/h
Voltage/power	90-246V/380W,47-63HZ
Noise	Standy<20dBA, painting <50dBA
Storage/Operation	-10℃-35℃(59°F-95°F)
Storage/Operation	10%-70% relative humidity, in non-condensation state
Surface tracing	Hyperbolic banner sensors, two-way induction up and down
Machine configuration
X axis guide	5m rails
Y axis guide	Standard model: 219cm (other models: 239cm, 309cm)
Z axis guide	15cm
Display screen	4.3’’ LCD, touch screen
Spay distance	0.5-1cm
X axis effective stroke	470cm
Y axis effective stroke	Standard model: 180cm (other models: 200cm, 270cm)
Z axis effective stroke	10cm
Synchro belt	1pc
Drive rack	5pcs
Net picture print height	Standard 1.8m (other models: 2.0m, 2.7m), unlimited width
Machine weight	62kg
Software	Professional Printer Maintop Software, ZKMC output software
Computer system	Windows XP, win7, win8, win10
Packing	1 plywood packing for standard model of machine, machine and inks in 1 box, total gross weight ~220kg, box dimension ~237x81x68cm
Remarks	The above data for reference only, may change due to continuous product/model upgrading.
